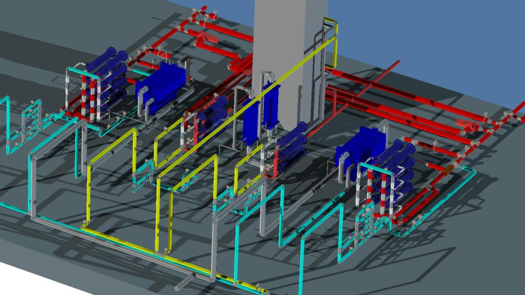

Thermodynamic Test Bench

Introduction:

The test bench is mainly used to simulate high, medium and low pressure air intake during the flight of aircraft engines on the ground, providing air intake with corresponding parameters for the air supply systems such as the fan end, air conditioning equipment, stamping air and cockpit/cabin air supply of the aircraft.

Parameters:

1) Gas supply flow rate: 800–8000 kg/h, test accuracy ±1.0%
2) Outlet pressure: 0 MPa to 3.5 MPa, test accuracy ±0.25%
3) Outlet temperature: -80°C to 650°C, test accuracy ±1.0°C
4) Heating rate: Adjustable from 5°C/s to 90°C/s
5) Noise: Noise level ≤ 85 dB at a distance of 1 meter from the test bench.
(All parameters above can be customized to meet specific user requirements.)
