Environmental Wind Tunnel

Introduction:

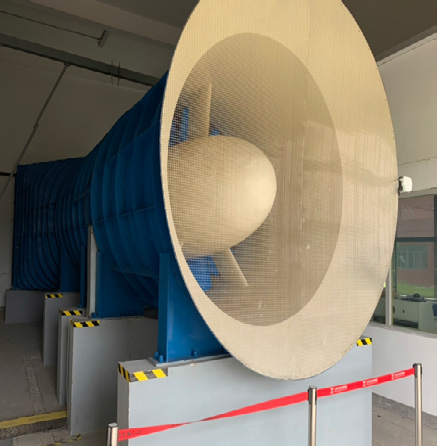

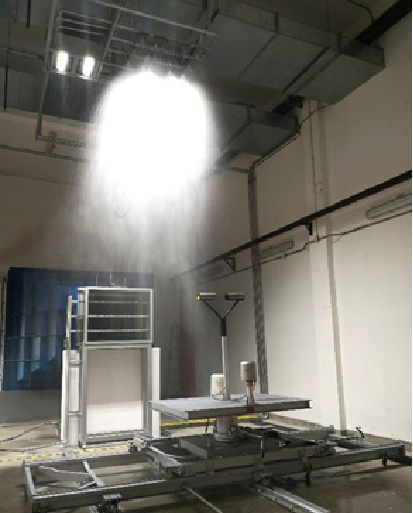

The environmental wind tunnel adopts an open DC wind tunnel and is equipped with an intelligent mobile rain test device. It can automatically adjust the size of raindrops and the amount of rainfall. It can simulate the size of rainfall and raindrops under any wind velocity conditions and can perform performance tests on windshield rain removal equipment.

Parameters:

1) Wind tunnel dimensions: 30.55m × 9.15m × 6m
2) Wind velocity range: 20 m/s to 80 m/s, wind deviation angle ≤ 0.5°
3) Rainfall range: 0–800 mm/h, raindrop diameter 0.5–4.5 mm
4) Fogdrop diameter: 15–50 μm, liquid water content: 0.03–3.0 g/m³
(All parameters above can be customized to meet specific user requirements.)
